PeopleBot P3-DX



The PeopleBot P3-DX is built on a Pioneer P3-DX base. The extension to that base allows for human chest height interaction with the robot. The PeopleBot offers a touchscreen which is connected to the in-built computer for human to robot interaction. Since this robot can be used for research and development, the touch screen can be programmed with user specific software. Various accessories can be purchased for this robot which allows the user to customize the robot to suit their particular needs.


Using special sensors, the robot is able to detect obstructions as well as detect flat surfaces such as a table top. With the use of optional grippers, the PeopleBot is able to pick up and place objects on a table. Additional accessories include laser-range finders, mono and stereo vision cameras, gyroscopes and joysticks. Due to the versatile design of the robot, almost any accessory can be added and programmed into the operations.

The PeopleBot is able to be controlled by either directional keys or a joystick through included software. This software is also able to plan paths including gradient navigation and can display a map of its sonar readings. This robot was primarily produced for research and development. It provides the tools and accessories to allow the user to setup testing scenarios, including robot vision capabilities. The robot software allows the user to run C/C++ programs making its use very customizable.

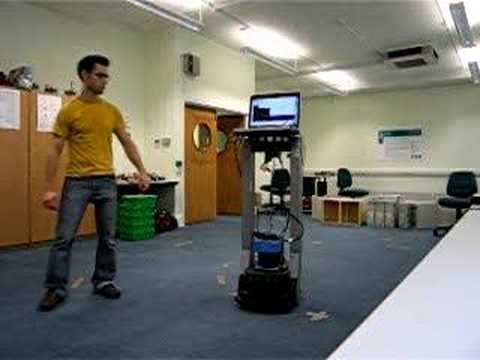

TelepresenceRobots Video:
See video
Specification:

A remote user requires Windows XP or Windows 7 and the PeopleBot control software. The Bot stands 44" tall and can travel up to 1.8 mph. It requires a minimum connection speed of 1mbit/sec for control operations. During normal operations, battery life is approximately 8 hours.

Purchase Price:
$36995
Price per month:
-
Height :
44"
Top Speed :
1.8 mph
Bandwidth required :
1 mbit/sec
Video resolution :
800x600
Run time :
8 hours
Unique features :
PeopleBot Gripper
Docking station :
No
Automated docking :
No
Crash avoidance:
IR Break Beam Sensors
Warranty:
-
Network Connectivity:
Wireless
